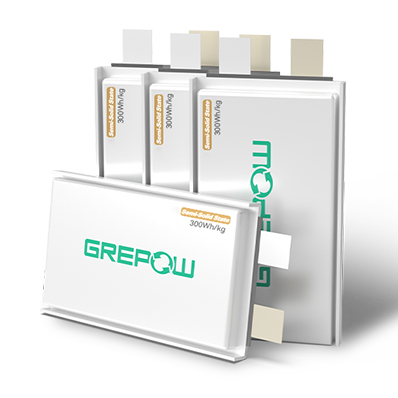

300 Wh/kg系列半固態高能量密度電池-格瑞普電池

產品詳情

300Wh/kg半固態高能量密度系列電池組參數

電池型號	容量（Ah）	能量（Wh）	串數（S）	額定電壓(V)	落地電壓(V)	尺寸(T×W×L ±5mm)	重量(±200g)	能量密度(Wh/kg)	持續放電電流 (3C)	峰值電流(10C≤15S)
Tattu 17Ah 4S	17	17Ah?251.6	4	14.8	12.2	34.3×71.5×191.5	932	269.96	51A	170A
Tattu 22Ah 4S	22	325.6	4	14.8	12.2	39.9×76.5×192	1172	277.82	66A	220A
Tattu 25Ah 4S	25	370	4	14.8	12.2	35.1×91.5×207	1324	279.46	75A	250A
Tattu 30Ah 4S	30	444	4	14.8	12.2	41.9×91.5×207	1564	283.89	90A	300A
Tattu 84Ah 4S	84	1243.2	4	14.8	12.2	50.3×151.5×287	4260	291.83	252A	840A
TARBG3017K06S10X	17	377.4	6	22.2	18.3	50.7×71.5×191.5	1376	274.27	51A	170A
TARBG3022K06S10X	22	488.4	6	22.2	18.3	59.1×76.5×192	1736	281.34	66A	220A
TARBG3025K06S10X	25	555	6	22.2	18.3	51.9×91.5×207	1964	282.59	75A	250A
TARBG3030K06S10X	30	666	6	22.2	18.3	62.1×91.5×207	2324	286.57	90A	300A
Tattu 84Ah 6S	84	1864.8	6	22.2	18.3	74.7×151.5×287	6368	292.84	252A	840A
Tattu 17Ah 8S	17	503.2	8	29.6	24.4	67.1×71.5×191.5	1770	284.26	51A	170A
Tattu 22Ah 8S	22	651.2	8	29.6	24.4	78.3×76.5×192	2281	285.51	66A	220A
Tattu 25Ah 8S	25	740	8	29.6	24.4	68.7×91.5×207	2604	284.15	75A	250A
Tattu 30Ah 8S	30	888	8	29.6	24.4	82.3×91.5×207	3115	285.08	90A	300A
Tattu 84Ah 8S	84	2486.4	8	29.6	24.4	99.1×151.5×287	8851	280.92	252A	840A
TARBG3017K12S10X	17	754.8	12	44.4	36.6	101.9×71.5×196.5	2655	284.26	51A	170A
TARBG3022K12S10X	22	976.8	12	44.4	36.6	118.7×76.5×197	3421	285.51	66A	220A
TARBG3025K12S10X	25	1110	12	44.4	36.6	104.3×91.5×212	3906	284.15	75A	250A
TARBG3030K12S10X	30	1332	12	44.4	36.6	124.7×91.5×212	4672	285.08	90A	300A
Tattu 84Ah 12S	84	3729.6	12	44.4	36.6	149.9×151.5×292	13277	280.92	252A	840A
TARBG3017K14S10X	17	880.6	14	51.8	42.7	118.3×71.5×196.5	3098	284.26	51A	170A
TARBG3022K14S10X	22	1139.6	14	51.8	42.7	137.9×76.5×197	3991	285.51	66A	220A
TARBG3025K14S10X	25	1295	14	51.8	42.7	121.1×91.5×212	4557	284.15	75A	250A
TARBG3030K14S10X	30	1554	14	51.8	42.7	144.9×91.5×212	5451	285.08	90A	300A
TARBG3084K14S10X	84	4351.2	14	51.8	42.7	174.3×151.5×292	15489	280.92	252A	840A
TARBG3017K18S10X	17	1132.2	18	66.6	54.9	151.1×71.5×196.5	3983	284.26	51A	170A
TARBG3022K18S10X	22	1465.2	18	66.6	54.9	176.3×76.5×197	5132	285.51	66A	220A
TARBG3025K18S10X	25	1665	18	66.6	54.9	154.7×91.5×212	5860	284.15	75A	250A
TARBG3030K18S10X	30	1998	18	66.6	54.9	185.3×91.5×212	7009	285.08	90A	300A
TARBG3084K18S10X	84	5594.4	18	66.6	54.9	223.1×151.5×292	19915	280.92	252A	840A
TARBG3017K24S10X	17	1509.6	24	88.8	73.2	200.3×71.5×196.5	5311	284.26	51A	170A
TARBG3022K24S10X	22	1953.6	24	88.8	73.2	233.9×76.5×197	6843	285.51	66A	220A
TARBG3025K24S10X	25	2220	24	88.8	73.2	205.1×91.5×212	7813	284.15	75A	250A
TARBG3030K24S10X	30	2664	24	88.8	73.2	245.9×91.5×212	9345	285	90A	300A
TARBG3084K24S10X	84	7459.2	24	88.8	73.2	296.3×151.5×292	26553	280.92	252A	840A
